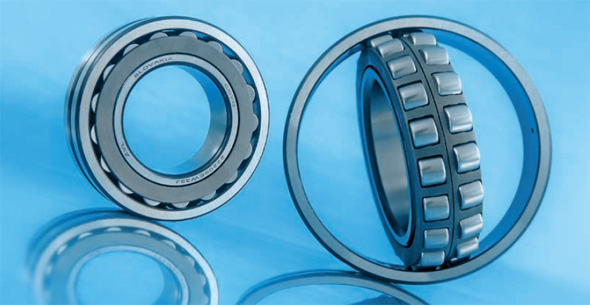

Роликові дворядні підшипники зі сферичними роліками
Mob.т. 38 050 342-87-75; 097-599-84-85 Продукція / ПІДШИПНИКИ / ПІДШИПНИКИ ВИРОБНИЦТВА ZVL / Роликові дворядні підшипники зі сферичними роліками
| РАЗМЕРІ mm | ОСНОВНЫЕ НАГРУЗКИ kN | ОГРАНИЧЕНИЕ СКОРОСТИ min-1 | МАРКИРОВКА | ВЕС kg | ACCESSORIES | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dxDxB | rs min. | C | Co | CYLINDRICAL BORE | TAPERED BORE (1:12) | ADAPT- ER SLEEVE | WITH- DRAWAL SLEEVE | WITH- DRAWAL NUT | ||||
| 40x80x23 | 1,1 | 93,1 | 105 | 6000 | 7500 | 22208EW33J | 22208EKW33J | 0,51 | 0,5 | H308 | AH308 | KM9 |
| 40x90x33 | 1,5 | 133 | 149 | 4100 | 5100 | 22308EW33J | 22308EKW33J | 1,07 | 1,05 | H2308 | AH2308 | KM9 |
| 45x85x23 | 1,1 | 97,3 | 112,8 | 5300 | 6700 | 22209EW33J | 22209EKW33J | 0,55 | 0,53 | H309 | AH309 | KM10 |
| 45x100x36 | 1,5 | 159 | 182 | 3700 | 4600 | 22309EW33J | 22309EKW33J | 1,43 | 1,4 | H2309 | AH2309 | KM10 |
| 50x90x23 | 1,1 | 105 | 125 | 5000 | 6300 | 22210EW33J | 22210EKW33J | 0,59 | 0,57 | H310 | AH310X | KM11 |
| 50x110x40 | 2 | 190 | 226 | 3300 | 4000 | 22310EW33J | 22310EKW33J | 1,92 | 1,88 | H2310 | AH2310X | KM11 |
| 55x100x25 | 1,5 | 124 | 148 | 4500 | 5600 | 22211EW33J | 22211EKW33J | 0,78 | 0,76 | H311 | AH311X | KM12 |
| 55x120x43 | 2/4,5 | 230 | 279 | 3000 | 3800 | 22311EW33J | 22311EKW33J | 2,4 | 2,3 | H2311 | AH2311X | KM12 |
| 60x110x28 | 1,5 | 143 | 175 | 40000 | 5000 | 22212EW33J | 22212EKW33J | 1,07 | 1,05 | H312 | AH312X | KM13 |
| 60x130x46 | 2,1/4,5 | 273 | 315 | 2800 | 3600 | 22312EW33J | 22312EKW33J | 2,9 | 2,8 | H2312 | AH2312X | KM13 |
| 60x130x46 | 2,1 | 212 | 284 | 2800 | 3300 | 22312W33M | 22312KW33M | 3 | 2,9 | H2312 | AH2312X | KM13 |
| 65x120x31 | 1,5 | 177 | 216 | 2600 | 3400 | 22213EW33J | 22213EKW33J | 1,45 | 1,42 | H313 | AH313 | KM15 |
| 65x140x48 | 2,1 | 304 | 351 | 2600 | 3400 | 22313EW33J | 22313EKW33J | 3,5 | 3,4 | H2313 | AH2313 | KM15 |
| 65x140x48 | 2,1 | 253 | 300 | 2700 | 3200 | 22313W33M | 22313KW33M | 3,6 | 3,5 | H2313 | AH2313 | KM15 |
| 70x125x31 | 1,5 | 189 | 239 | 3600 | 4500 | 22214EW33J | 22214EKW33J | 1,61 | 1,57 | H314 | AH314 | KM16 |
| 70x150x51 | 2,1 | 344 | 402 | 2400 | 3100 | 22314EW33J | 22314EKW33J | 4,2 | 4,1 | H2314 | AH2314X | KM16 |
| 75x130x31 | 1,5 | 196 | 255 | 3400 | 4300 | 22215EW33J | 22215EKW33J | 1,7 | 1,66 | H315 | AH315 | KM17 |
| 75x160x55 | 2,1 | 396 | 489 | 2300 | 3000 | 22315EW33J | 22315EKW33J | 5,3 | 5,2 | H2315 | AH2315X | KM17 |
| 80x140x33 | 2 | 224 | 295 | 3200 | 4000 | 22216EW33J | 22216EKW33J | 2,11 | 2,07 | H316 | AH316 | KM18 |
| 80x170x58 | 2,1 | 443 | 551 | 2200 | 2800 | 22316EW33J | 22316EKW33J | 6,3 | 6,1 | H2316 | AH2316X | KM18 |
| 85x150x36 | 2 | 260 | 337 | 3000 | 3800 | 22217EW33J | 22217EKW33J | 2,61 | 2,6 | H317 | AH317X | KM19 |
| 85x180x60 | 3 | 482 | 603 | 2000 | 2600 | 22317EW33J | 22317EKW33J | 7,2 | 7 | H2317 | AH2317X | KM19 |
| 90x160x40 | 2 | 308 | 406 | 2600 | 3400 | 22218EW33J | 22218EKW33J | 3,4 | 3,4 | H318 | AH318X | KM20 |
| 90x160x40 | 2 | 215 | 289 | 2000 | 2500 | 22218W33M | 22218KW33M | 3,6 | 3,4 | H318 | AH318X | KM20 |
| 90x160x52,4 | 2 | 316 | 453 | 1900 | 2400 | 23218W33M | 23218KW33M | 4,7 | 4,6 | H2318 | AH3218X | KM20 |
| 90x190x64 | 3 | 536 | 673 | 1900 | 2400 | 22318EW33J | 22318EKW33J | 8,5 | 8,3 | H2318 | AH2318X | KM20 |
| 95x170x43 | 2,1 | 346 | 464 | 2400 | 3200 | 22219EW33J | 22219EKW33J | 4,17 | 4,1 | H319 | AH319X | KM21 |
| 95x200x67 | 3 | 587 | 744 | 1800 | 2300 | 22319EW33J | 22319EKW33J | 9,8 | 9,6 | H2319 | AH2319 | KM21 |
| 100x180x46 | 2,1 | 379 | 510 | 2200 | 3000 | 22220EW33J | 22220EKW33J | 5 | 4,9 | H320 | AH320X | KM22 |
| 100x180x46 | 2,1 | 311 | 415 | 1900 | 2400 | 22220W33M | 22220KW33M | 5,3 | 5,2 | H320 | AH320X | KM22 |
| 100x180x60,3 | 2,1 | 400 | 570 | 1700 | 2000 | 23220W33M | 23220KW33M | 6,9 | 6,7 | H2320 | AH3220X | KM22 |
| 100x215x73 | 3 | 682 | 842 | 1700 | 2200 | 22320EW33J | 22320EKW33J | 12,3 | 12,1 | H2320 | AH2320X | KM22 |
| 100x215x73 | 3 | 546 | 815 | 1700 | 2000 | 22320W33M | 22320KW33M | 13 | 12,7 | H2320 | AH2320X | KM22 |
| 110x180x56 | 3 | 374 | 588 | 1900 | 2600 | 23122EW33J | 23122EKW33J | 6 | 5,3 | H3122 | AH122X | KM24 |
| 110x200x53 | 2,1 | 488 | 652 | 2000 | 2800 | 22222EW33J | 22222EKW33J | 7,2 | 6,94 | H322 | AH3122X | KM24 |
| 110x200x69,8 | 2,1 | 528 | 786 | 1500 | 1800 | 23222W33M | 23222KW33M | 9,9 | 9,6 | H2322 | AH3222X | KM25 |
| 110x240x80 | 3 | 805 | 1000 | 1500 | 1900 | 22322EW33J | 22322EKW33J | 17,2 | 16,8 | H2322 | AH2322X | KM25 |
| 110x240x80 | 3 | 653 | 955 | 1500 | 1800 | 22322W33M | 22322KW33M | 18,2 | 17,9 | H2322 | AH2322X | KM25 |
| 120x180x46 | 2 | 301 | 500 | 1600 | 1900 | 23024EW33J | 23024EKW33J | 3,9 | 3,8 | H3024 | AH3024X | KM26 |
| 120x200x62 | 2 | 431 | 646 | 1500 | 1800 | 23124W33M | 23124KW33M | 8,2 | 8 | H3124 | AH3124X | KM26 |
| 120x215x58 | 2,1 | 525 | 749 | 1900 | 2600 | 22224EW33J | 22224EKW33J | 9 | 8,8 | H3124 | AH3124X | KM26 |
| 120x260x86 | 3 | 922 | 1165 | 1400 | 1800 | 22324EW33J | 22324EKW33J | 21,5 | 21,1 | H2324 | AH2324X | KM27 |
| 120x260x86 | 3 | 766 | 1100 | 1400 | 1700 | 22324W33M | 22324KW33M | 22,1 | 21,6 | H2324 | AH2324X | KM27 |
| 130x200x52 | 2 | 361 | 571 | 1500 | 1800 | 23026EW33J | 23026EKW33J | 5,7 | 5,6 | H3026 | AH3026X | KM28 |
| 130x210x64 | 2 | 474 | 752 | 1400 | 1700 | 23126W33M | 23126KW33M | 8 | 7,9 | AH24026 | KM27 | |
| 130x230x64 | 3 | 709 | 1040 | 1800 | 2400 | 22226EW33J | 22226EKW33J | 11,2 | 11 | H3126 | AH3126X | KM28 |
| 130x230x64 | 3 | 546 | 800 | 1500 | 1800 | 22226W33M | 22226KW33M | 11,8 | 11,7 | H3126 | AH3126X | KM28 |
| 130x280x93 | 4 | 1124 | 1518 | 1300 | 1700 | 22326EW33J | 22326EKW33J | 26,8 | 26,2 | H2326 | AH2326X | KM29 |
| 130x280x93 | 4 | 978 | 1320 | 1300 | 1600 | 22326W33M | 22326KW33M | 28,6 | 28 | H2326 | AH2326X | KM29 |
| 130x280x93 | 4 | 1091 | 1379 | 1300 | 1700 | 23226EW33J | 23226EKW33J | 26,8 | 26,15 | H2326 | AH2326X | KM29 |
| 140x210x53 | 2 | 380 | 634 | 1400 | 1700 | 23028EW33J | 23028EKW33J | 6,9 | 6,7 | H3028 | AH3028X | KM30 |
| 140x225x68 | 2,1 | 540 | 866 | 1300 | 1600 | 23128W33M | 23128KW33M | 10,8 | 10,5 | H3128 | AH3128X | KM30 |
| 140x250x68 | 3 | 793 | 1170 | 1700 | 2200 | 22228EW33J | 22228EKW33J | 14,1 | 13,8 | H3128 | AH3128X | KM30 |
| 140x250x68 | 3 | 610 | 900 | 1400 | 1700 | 22228W33M | 22228KW33M | 15 | 14,6 | H3128 | AH3128X | KM30 |
| 140x250x88 | 3 | 910 | 1365 | 1200 | 1500 | 23228W33M | 23228KW33M | 19,2 | 18,6 | H2328 | AH3228X | KM31 |
| 140x300x102 | 4 | 1210 | 1950 | 1200 | 1500 | 22328W33M | 22328KW33M | 35,6 | 34,8 | H2328 | AH2328X | KM31 |
| 150x225x56 | 2,1 | 435 | 855 | 1300 | 1600 | 23030W33M | 23030KW33M | 8,3 | 8 | H3030 | AH3030X | KM32 |
| 150x250x80 | 2,1 | 711 | 1129 | 1200 | 1500 | 23130W33M | 23130KW33M | 16,6 | 16,1 | H3130 | AH3130X | KM33 |
| 150x270x73 | 3 | 956 | 1404 | 1600 | 2000 | 22230EW33J | 22230EKW33J | 17,9 | 17,5 | H3130 | AH3130X | KM33 |
| 150x270x73 | 3 | 736 | 1080 | 1300 | 1600 | 22230W33M | 22230KW33M | 18,6 | 18,2 | H3130 | AH3130X | KM33 |
| 150x320x108 | 4 | 1150 | 1850 | 1100 | 1400 | 22330W33M | 22330KW33M | 42,5 | 42,7 | H2330 | AH2330X | KM33 |
| 160x240x60 | 2,1 | 486 | 940 | 1200 | 1500 | 23032W33M | 23032KW33M | 10,3 | 10 | H3032 | AH3032 | KM34 |
| 160x270x86 | 2,1 | 785 | 1241 | 1100 | 1400 | 23132W33M | 23132KW33M | 21,3 | 20,7 | H3132 | AH3132 | KM36 |
| 160x290x80 | 3 | 1000 | 1365 | 1500 | 1900 | 22232EW33J | 22232EKW33J | 22,7 | 22,2 | H3132 | AH3132 | KM36 |
| 160x290x80 | 3 | 863 | 1290 | 1200 | 1500 | 22232W33M | 22232KW33M | 24,4 | 23,9 | H3132 | AH3132 | KM36 |
| 160x340x114 | 4 | 1250 | 1680 | 1000 | 1300 | 22332W33M | 22332KW33M | 51,9 | 50,7 | H2332 | AH2332 | KM36 |
| 170x260x67 | 2,1 | 621 | 1060 | 1100 | 1400 | 23034W33M | 23034KW33M | 13,8 | 13,4 | H3034 | AH3034 | KM36 |
| 170x280x88 | 2,1 | 826 | 1351 | 1000 | 1300 | 23134W33M | 23134KW33M | 22,8 | 22,2 | H3134 | AH3134 | KM38 |
| 170x310x86 | 2,1 | 921 | 1311 | 1100 | 1400 | 22234W33M | 22234KW33M | 30 | 29,4 | H3134 | AH3134 | KM38 |
| 170x360x120 | 4 | 1400 | 1970 | 940 | 1200 | 22334W33M | 22334KW33M | 59,2 | 58,2 | H2334 | AH2334 | KM38 |
| 180x280x74 | 2,1 | 725 | 1250 | 1000 | 1300 | 23036W33M | 23036KW33M | 17,6 | 17,1 | H3036 | AH3036 | KM38 |
| 180x300x96 | 3 | 957 | 1540 | 940 | 1200 | 23136W33M | 23136KW33M | 28,9 | 28 | H3136 | AH3136 | KM40 |
| 180x320x86 | 4 | 938 | 1640 | 1000 | 1300 | 22236W33M | 22236KW33M | 31,5 | 30,8 | H3136 | AH2236 | KM40 |
| 180x380x126 | 4 | 1540 | 2130 | 890 | 1100 | 22336W33M | 22336KW33M | 73,2 | 71,7 | H2336 | AH2336 | KM40 |
| 190x290x75 | 2,1 | 753 | 1340 | 940 | 1200 | 23038W33M | 23038KW33M | 18,8 | 18,3 | H3038 | AH3038 | HML41T |
| 190x320x104 | 3 | 1130 | 1840 | 890 | 1100 | 23138W33M | 23138KW33M | 36,1 | 35 | H3138 | AH3138 | HM42T |
| 190x340x92 | 4 | 1040 | 1551 | 940 | 1200 | 22238W33M | 22238KW33M | 38,4 | 37,7 | H3138 | AH2238 | HM42T |
| 190x400x132 | 5 | 1920 | 2710 | 840 | 1100 | 22338W33M | 22338KW33M | 84 | 82,8 | H2338 | AH2338 | HM42T |
| 200x310x82 | 2,1 | 820 | 1750 | 890 | 1100 | 23040W33M | 23040KW33M | 23,8 | 23,4 | H3040 | AH3040 | HML43T |
| 200x340x112 | 3 | 1240 | 2010 | 840 | 1100 | 23140W33M | 23140KW33M | 44 | 42,7 | H3140 | AH3140 | HM44T |
| 200x360x98 | 4 | 1200 | 2150 | 890 | 1100 | 22240W33M | 22240KW33M | 46 | 45,1 | H3140 | AH2240 | HM44T |
| 200x420x138 | 5 | 1850 | 3150 | 790 | 940 | 22340W33M | 22340KW33M | 99 | 97 | H2340 | AH2340 | HM44T |
| 220x340x90 | 3 | 1020 | 2120 | 790 | 940 | 23044W33M | 23044KW33M | 26,6 | 25,7 | H3040 | AH3040 | HML47T |
| 240x360x92 | 3 | 1050 | 2310 | 750 | 890 | 23048W33M | 23048KW33M | 28,9 | 27,8 | H3048 | AH3048 | HML52T |
| 260x400x104 | 4 | 1395 | 2720 | 670 | 790 | 23052W33M | 23052KW33M | 37,5 | 36,1 | H3052 | AH3052 | HML56T |
| 400x600x148 | 5 | 2790 | 6050 | 400 | 470 | 23080W33M | 23080KW33M | 156 | 152 | H3080 | AH3080 | HML86T |
